<- Environmental & Lab SystemsResidue Analysis / 06CECW-02B

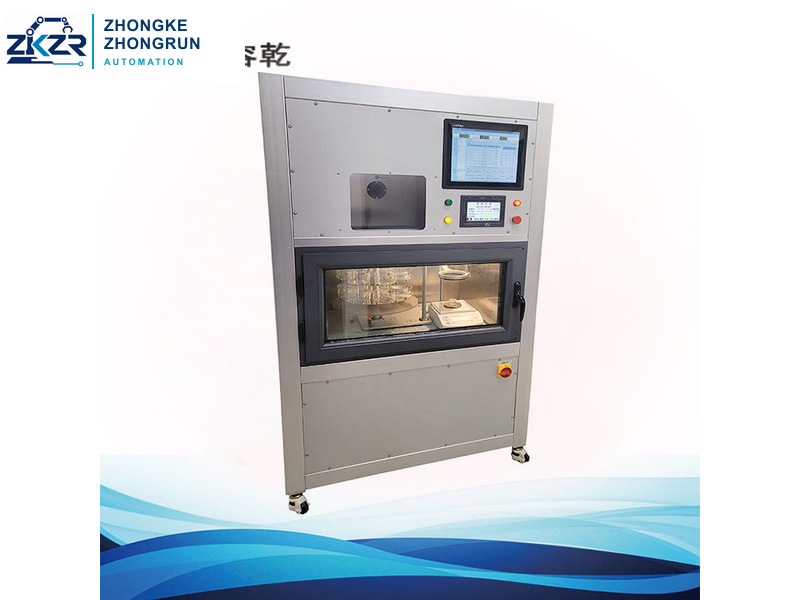

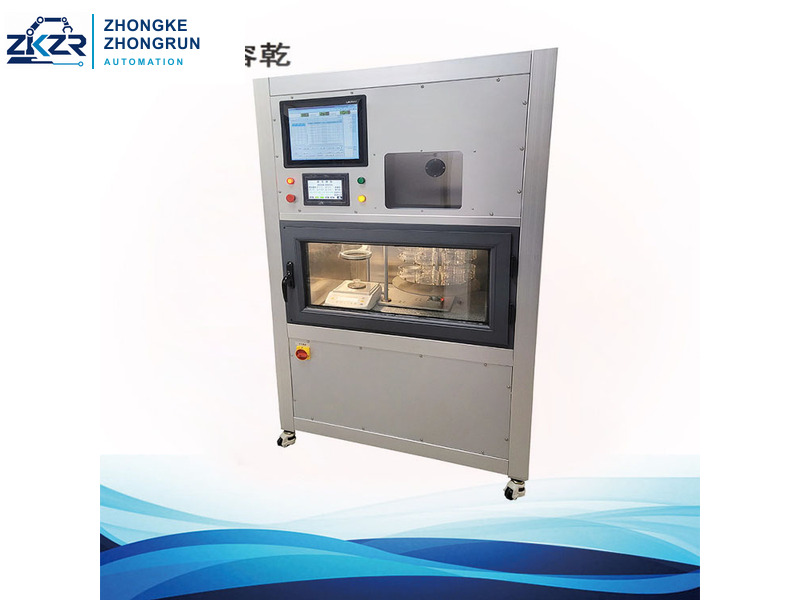

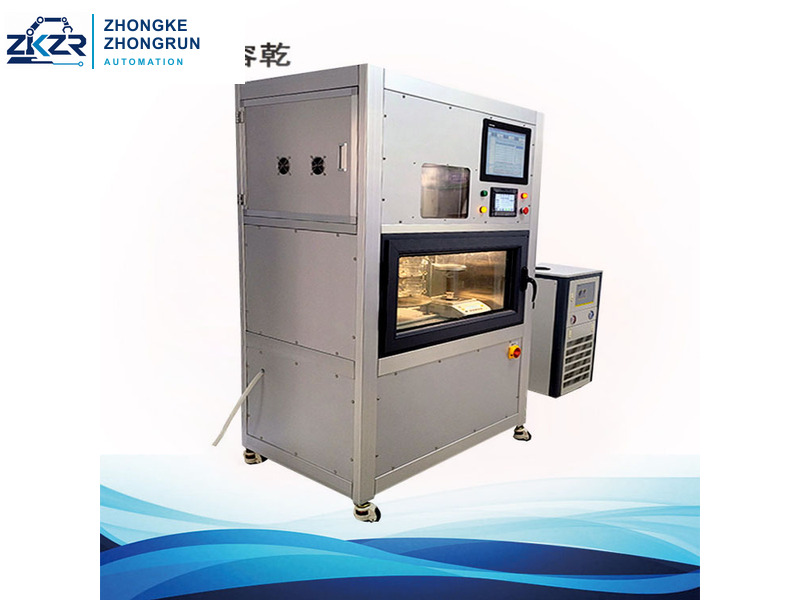

Automatic Gravimetric Solids and Migration Analyzer
Automate TDS, moisture, pollution, migration-residue and component-cleanliness gravimetric workflows.
A 52-position robotic gravimetric system for water-sample TDS, soil and sludge moisture or pollution analysis, packaging migration residue and electronic-component cleanliness testing.
Reference unit price / AvailabilityUSD 60,000 per system / In stock
01 / Application
Workflow and key features
After prepared samples are loaded, the CECW-02B automatically completes vessel handling, drying, conditioned weighing, repeat constant-weight cycles, calculations and reporting. Its application scope covers dissolved solids in water; moisture content and potential pollutant type or concentration in sludge, soil, environmental and stationary-source samples; safety evaluation of food and pharmaceutical packaging or containers; and cleanliness inspection of electronic components.
- Fully automatic robotic operation for up to 52 prepared samples per batch
- Integrated precision weighing records mass to 0.1 mg
- Proprietary low-humidity control isolates weighing from ambient humidity changes
- Automated repeat weighing and constant-weight determination reduce manual transfers
- Stable, adjustable temperature and humidity control with real-time trend logging
- FFU high-efficiency filtered airflow in the work chamber
- Automatic calibration maintains long-term measurement accuracy
- Analysis software completes calculations, batch reports and data export
- Integrated environmental control eliminates the need for a separate controlled evaporation-residue weighing room
- Measures total dissolved solids in water samples
- Supports moisture and pollution analysis of sludge, soil, environmental and stationary-source samples
- Supports migration and non-volatile residue testing for food and pharmaceutical packaging or containers
- Supports electronic-component cleanliness inspection
02 / Public technical data
Reference configuration
Published values are for the referenced standard configuration. Fixtures, sensors, utilities and supported methods are confirmed for the quoted configuration.
- Balance capacity
- 220 g
- Balance resolution
- 0.1 mg
- Balance stabilization time
- <=6 s
- Weighing-chamber temperature
- 15-55 deg C; control error +/-0.5 deg C
- Drying-chamber temperature
- Ambient +5 deg C to 185 deg C; control error +/-0.5 deg C
- Humidity range
- 15-50% RH; higher-humidity configurations available
- Air treatment
- Fan-driven high-efficiency filtration
- Machine dimensions
- 1310 x 750 x 1880 mm (L x W x H)
- Approximate weight
- 490 kg
- Power requirement
- 3000 W; 220 V +/-10%, 50 Hz
- Stable operating environment
- 5-40 deg C
Test-method referencesWorkflow references, not a certification claim12 references +
These references identify workflows described for this model. The formal quotation confirms the exact edition, fixtures, software, accessories and verification documents supplied for the selected configuration.
- GB/T 5750.4-2023 - physical and sensory indicators for drinking water
- DZ/T 0064.8-2021 - suspended matter in groundwater
- DZ/T 0064.9-2021 - gravimetric total dissolved solids in groundwater
- GB 17378.4-2007 - marine monitoring, seawater analysis
- GB/T 14415-2007 - solids in industrial cooling and boiler water
- T/QAS 030-2021 - gravimetric total dissolved solids in brine
- GB/T 27841-2011 - water solubility of industrial chemicals
- ASTM D5907-18 - filterable and nonfilterable matter in water
- GB 5009.3-2016 - moisture in foods
- GB/T 23561.6-2009 - moisture in coal and rock
- GB/T 1927.4-2021 - moisture content of small clear wood specimens
- GB/T 11901-1989 - suspended matter in water by gravimetric method
- Sample matrix and preparation
- TDS, moisture, pollution, migration or cleanliness workflow
- Required test method and reporting output
- Batch volume and destination utilities
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published values are for the referenced standard configuration. Fixtures, sensors, utilities and supported methods are confirmed for the quoted configuration. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
