<- Materials & Physical PropertiesFriction & Tack / 44MCS-02B

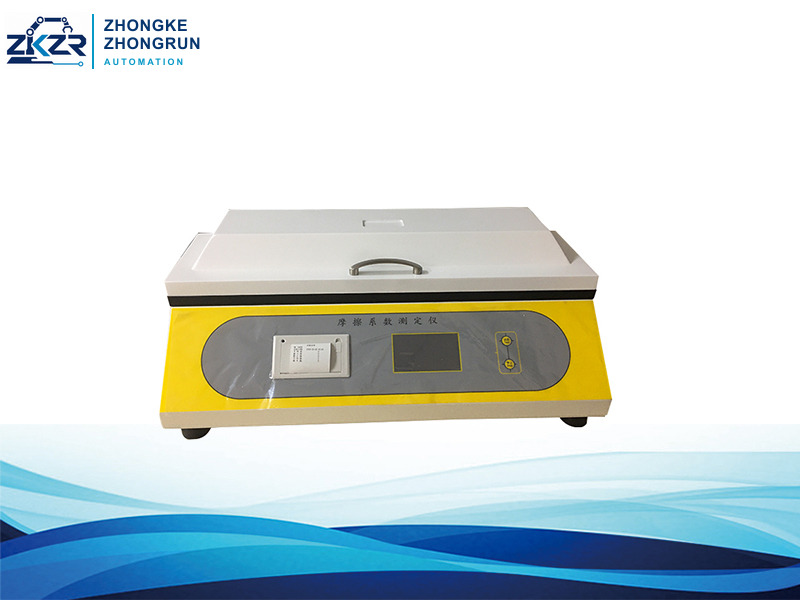

Coefficient of Friction Tester with Safety Enclosure
Measure material friction behavior in an enclosed test area.
An enclosed coefficient-of-friction tester for controlled static and kinetic friction measurement on films, paper, foil and other sheets.
Reference unit price / AvailabilityUSD 4,500 per system / In stock
01 / Application
Workflow and key features
The MCS-02B combines controlled sled movement with a protected test area and electronic data processing. It is intended for repeatable surface-slip evaluation where operator protection and test-area control are priorities.
- Enclosed test area adds protection around the moving mechanism
- Static and kinetic friction from a controlled horizontal test
- Supports multiple sled masses and configured material thicknesses
- Automatic statistics and result storage support batch comparison
- Touchscreen, printing and data interfaces support routine laboratory use
02 / Public technical data
Reference configuration
Published values describe the referenced standard configuration. The formal quotation confirms the selected range, fixtures, utilities, method edition and supplied documentation.
- Force options
- 5 N, 10 N or 30 N
- Test accuracy
- 0.2% FS
- Travel
- 330 mm
- Sled masses
- 200 g and 500 g
- Test speed
- 0-1000 mm/min, adjustable
- Specimen height
- 0-30 mm
- Power
- 100 W
- Machine dimensions
- 640 x 300 x 230 mm (L x W x H)
- Net weight
- 22 kg
- Electrical supply
- AC 220 V, 50 Hz
Test-method referencesWorkflow references, not a certification claim4 references +
These references identify workflows described for this model. The formal quotation confirms the exact edition, fixtures, software, accessories and verification documents supplied for the selected configuration.
- GB/T 10006-2021
- ISO 8295:1995
- ASTM D1894
- TAPPI T816
- Material structure and thickness
- Sample dimensions
- Required test method
- Expected force, pressure or barrier range
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published values describe the referenced standard configuration. The formal quotation confirms the selected range, fixtures, utilities, method edition and supplied documentation. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
