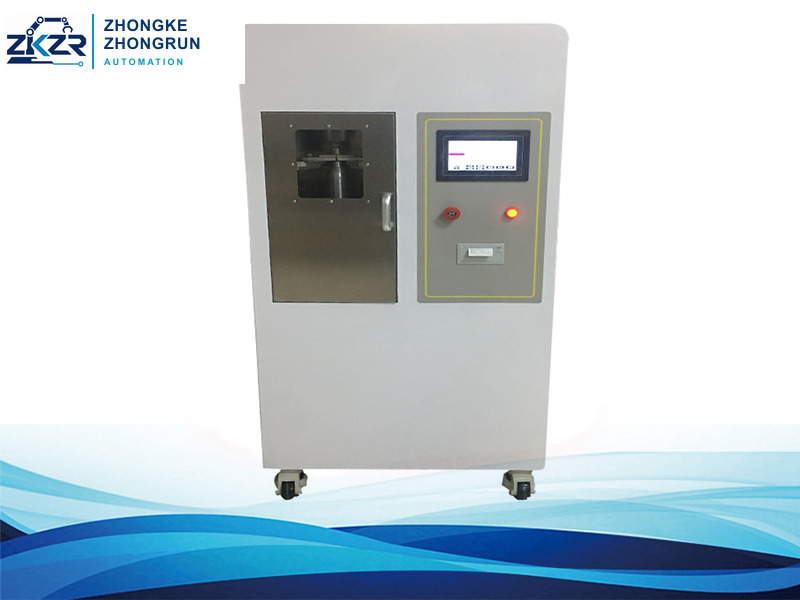

Glass Bottle Internal Pressure Tester
Evaluate the internal-pressure resistance of glass containers.
An automatic pressure-hold and burst tester for beverage, infusion, pharmaceutical and other glass containers using water as the pressurizing medium.
Reference unit price / AvailabilityUSD 4,000 per system / In stock
01 / Application
Workflow and key features
The NNY-01A applies a controlled pressure ramp to the test container, records the pressure curve and completes pressure-hold or burst workflows. An enclosed safety chamber, overpressure shutdown and emergency stop help contain glass fragments during testing.
- Automatic pressure ramp, hold, release, calculation and result storage
- Adjustable linear pressurization rate
- Pressure-curve recording with print and export support
- Enclosed test chamber with overpressure shutdown and emergency stop
- Touchscreen operation and role-based access control
- Custom bottle-neck fixtures available for different containers
02 / Public technical data
Reference configuration
Published values are for the referenced standard configuration. Fixtures, sensors, utilities and supported methods are confirmed for the quoted configuration.
- Pressure range
- 0-6 MPa; other ranges available
- Combined error
- <0.5% FS
- Display resolution
- 0.0001 MPa
- Standard bottle-neck fixture
- 26 mm diameter; custom fixtures available
- Operating temperature
- 5-50 deg C
- Linear pressurization rate
- 0.4-0.58 +/-0.1 MPa/s, adjustable
- Pressurizing medium
- Water
- Machine dimensions
- 720 x 550 x 1500 mm (L x W x H)
- Weight
- 160 kg
- Rated power
- 0.8 kW with leakage-current protection
- Electrical supply
- 220 V, 50 Hz
Test-method referencesWorkflow references, not a certification claim3 references +
These references identify workflows described for this model. The formal quotation confirms the exact edition, fixtures, software, accessories and verification documents supplied for the selected configuration.
- GB/T 4546-2008 - internal pressure resistance of glass containers
- YBB00172003-2015 - internal pressure resistance test method
- Chinese Pharmacopoeia 2025, General Chapter 4017 - internal pressure resistance of glass containers
- Container type and drawing
- Sample dimensions and quantity
- Required test method
- Target load, pressure or thermal profile
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published values are for the referenced standard configuration. Fixtures, sensors, utilities and supported methods are confirmed for the quoted configuration. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
