<- Materials & Physical PropertiesTensile & Peel / 01XLW-PC

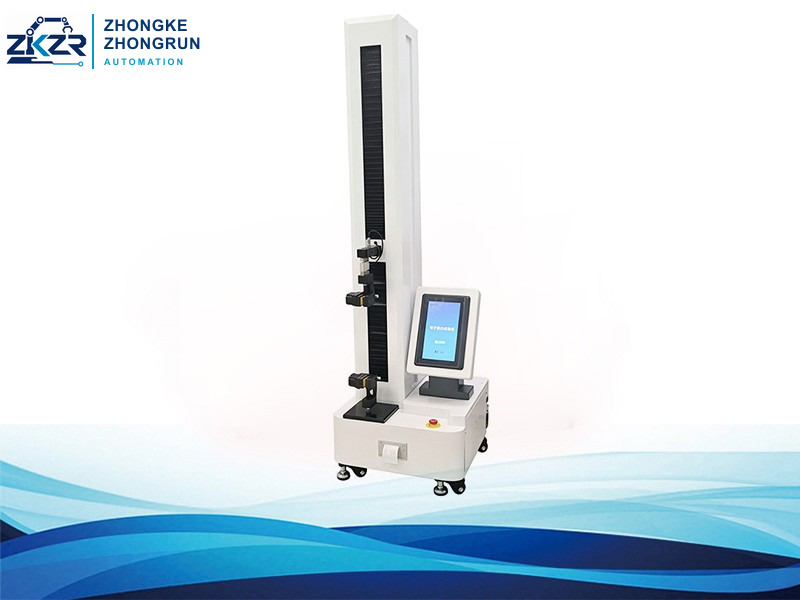

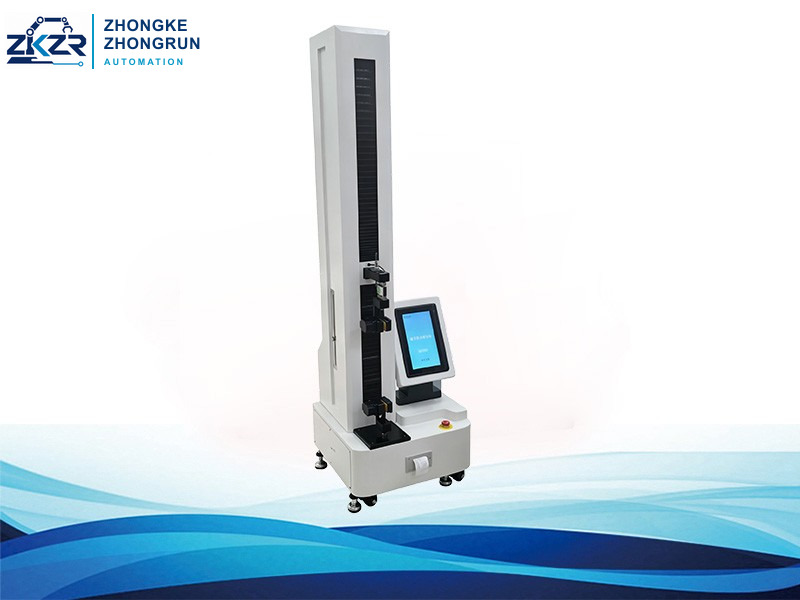

Electronic Tensile Tester
Perform tensile, peel, tear, puncture and seal-strength work on flexible materials.
A servo-driven universal tester for tensile, peel, tear, puncture, opening-force, unwind-force and seal-strength work on flexible materials and adhesive products.
Reference unit price / AvailabilityUSD 11,000 per system / In stock
01 / Application
Workflow and key features
The XLW-PC uses a servo motor, ball screw, force sensor and displacement encoder to capture force-displacement data. Independent test programs support packaging, adhesive and selected medical-material workflows from one platform.
- Tensile, peel, tear and related test programs in one system
- Touchscreen operation with microcomputer control
- Stepless test-speed control from 1 to 500 mm/min
- Travel limits, overload protection, automatic return and power-loss memory
- Parameter setup, printing, result review, clearing and calibration functions
- RS232 and network interfaces for data transfer and centralized management
- Replaceable force sensors and application-specific fixture options
02 / Public technical data
Reference configuration
Published values are for the referenced standard configuration. Fixtures, sensors, utilities and supported methods are confirmed for the quoted configuration.
- Force capacity options
- 10 N, 50 N, 500 N, 1500 N or 2000 N; one or more sensors selectable
- Accuracy class
- Class 0.2
- Test speed
- 1-500 mm/min, stepless
- Displacement error
- +/-1%
- Standard test width
- 35 mm; other fixtures available
- Travel
- 1000 mm
- Machine dimensions
- 500 x 500 x 1520 mm (L x W x H)
- Weight
- 133 kg
- Recommended environment
- 23 +/- 2 deg C; RH <=80%, non-condensing
- Electrical supply
- 220 V, 50 Hz
Test-method referencesWorkflow references, not a certification claim18 references +
These references identify workflows described for this model. The formal quotation confirms the exact edition, fixtures, software, accessories and verification documents supplied for the selected configuration.
- GB/T 13022-1991 - tensile properties of plastic films
- GB/T 8808 - peel testing of flexible composite plastics
- GB/T 1040 - tensile properties of plastics
- GB/T 4850-2002 - low-speed unwind force of pressure-sensitive tape
- GB/T 7753-1987 - tensile properties of pressure-sensitive tape
- GB/T 7754-1987 - shear strength of pressure-sensitive tape
- GB/T 453-2002 - tensile strength of paper and board
- GB/T 16578.1-2008 - tear resistance of plastic film and sheet
- GB/T 7122-1996 - peel strength of high-strength adhesives
- GB/T 2790-1995 - 180-degree peel strength of adhesives
- GB/T 2791-1995 - T-peel strength of adhesives
- GB/T 2792-2014 - peel strength of adhesive tape
- YY/T 0148-2017 and YY/T 0148-2006 - medical adhesive tape methods
- YY/T 0698.5-2009 - packaging for terminally sterilized medical devices
- GB/T 31125-2014 - loop tack of adhesive tape
- QB/T 2358-1998 - heat-seal strength of plastic film bags
- QB/T 1130-1991 - right-angle tear resistance of plastics
- FINAT Test Methods - labelstock testing references
- Material structure and thickness
- Sample dimensions
- Required test method
- Expected force, pressure or barrier range
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published values are for the referenced standard configuration. Fixtures, sensors, utilities and supported methods are confirmed for the quoted configuration. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
