<- Digital Cutting SystemsTextiles & Leather / 60ZKZR-DC-CPT
Carpet and Floor Mat Digital Cutting System
Cut carpet, floor-mat and automotive-interior materials to nested shapes.
An automatic digital cutting platform for carpets, automotive floor mats, artificial turf and related backed textile materials.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 13,000 per system / In stock

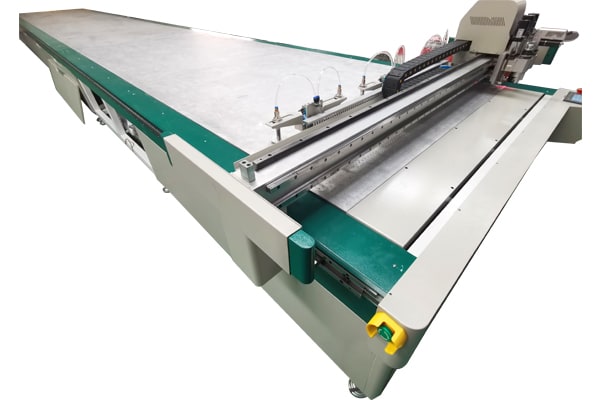

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.
The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
Roll or sheet material is stabilized by vacuum and processed with a tool chosen for pile, backing and reinforcement. Automatic feeding supports continuous production, while camera or projection options can locate printed patterns and irregular features.
- Automatic feeding for roll carpet and floor-mat production
- Tool choice protects pile while cutting reinforced backing structures
- Punching and marking options support downstream assembly
- CCD contour recognition available for printed and patterned material
- Digital nesting reduces dependence on physical templates
- Vacuum zoning and feed correction are selected for material weight and width
02 / Public technical data
Reference configuration
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Oscillating knife or powered rotary tool with punching, marking and bevel options as required
- Material handling
- Automatic conveyor feeding with roll cradle and deviation-correction options; fixed table available for sheets
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- Red-light or projection positioning; CCD recognition available for printed carpets and contour alignment
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected to the usable sheet or roll width and maximum part dimensions
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
