<- Digital Cutting SystemsPackaging & Foam / 57ZKZR-DC-EVA
EVA Foam Digital Cutting System
Cut EVA, EPE and related foam packaging materials from digital patterns.
A configurable digital cutting system for EVA, EPE and related foam inserts, cushioning components and protective packaging without fixed dies.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 13,500 per system / In stock

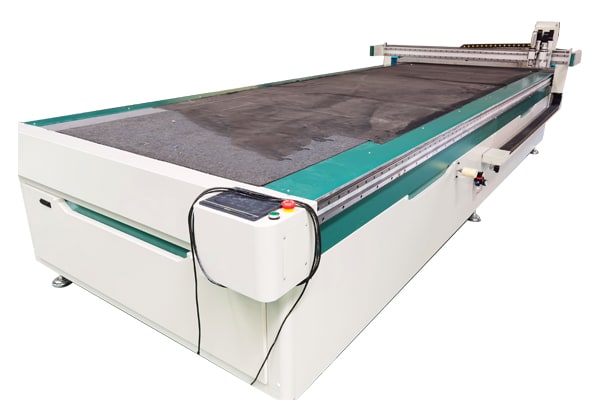

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.

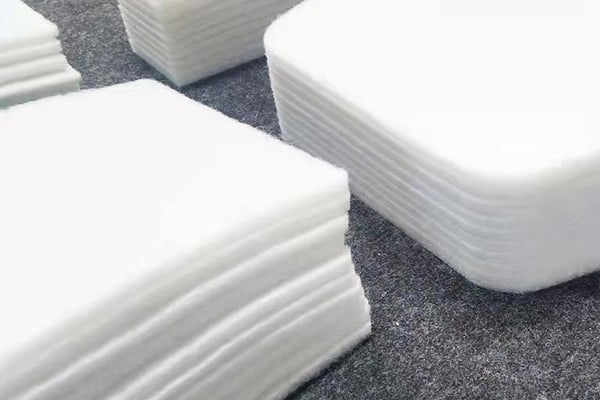

The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
Digital patterns are nested and converted into tool paths, while vacuum hold-down stabilizes the foam during mechanical cold cutting. Tool stroke, blade geometry, table format and feeding method are selected for foam density, thickness, cell structure and required edge quality.
- Die-free conversion of custom foam inserts and cushioning profiles
- Mechanical cold cutting without laser burning or heat-affected edges
- Tool selection for soft, resilient or higher-density foam structures
- Digital nesting supports mixed shapes and short production runs
- Sheet-table or conveyor arrangement selected for the incoming material
- V-cutting, marking and routing options reviewed for three-dimensional insert requirements
02 / Public technical data
Reference configuration
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Electric or pneumatic oscillating knife; milling, V-cutting or marking options reviewed for the foam construction
- Material handling
- Fixed vacuum table for sheets or conveyor feeding for roll and continuous foam formats
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- Digital origin and red-light positioning; camera or projection assistance available for preprinted or irregular stock
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected to the usable sheet or roll width and maximum part dimensions
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
