<- Digital Cutting SystemsTextiles & Leather / 71ZKZR-DC-LTH
Genuine Leather Digital Cutting System
Digitize, nest and cut leather parts for configured production workflows.
A scanning, nesting and knife-cutting system for genuine leather hides used in upholstery, footwear, bags and other irregular-hide workflows.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 30,500 per system / In stock

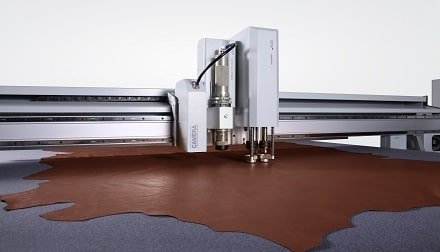

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.
The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
The target configuration scans or projects the hide, identifies the usable boundary and marked defects, nests parts around constraints and cuts them on a zoned vacuum table. Scanner, projection, nesting and marking functions are selected for hide size, grading practice and traceability needs.
- Hide scanning or camera capture supports irregular-boundary recognition
- Defect-aware digital nesting improves use of high-value leather
- Projection assists part placement, grading and collection workflows
- Punching and marking options prepare parts for assembly
- Zoned vacuum stabilizes irregular hides without physical dies
- The listed price assumes a scanning and nesting configuration, not a basic flatbed only
02 / Public technical data
Reference configuration
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Oscillating knife with punching, marking and optional projection tools for leather parts
- Material handling
- Large fixed zoned-vacuum table for irregular hides; loading and unloading workflow selected for throughput
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- Overhead hide scanning or camera capture with projection and defect-aware nesting options
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected for maximum hide dimensions and operator loading access
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
