Architectural Membrane Digital Cutting System
Cut large flexible membrane patterns for fabrication and assembly.
An automatic-feeding digital knife system for tent fabric, tarpaulin, Oxford cloth, coated architectural membrane and other large flexible patterns.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 15,000 per system / In stock

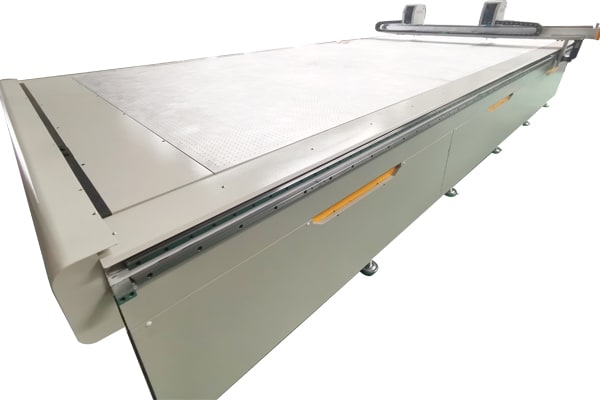

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.

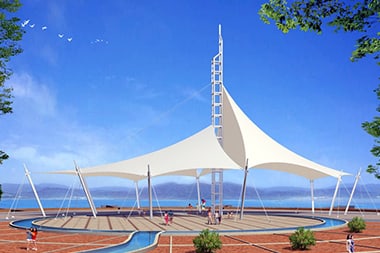

The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
The available source material identifies automatic feeding and automatic edge finding for tent, tarpaulin and Oxford-cloth cutting. Large-format handling, roll support, edge correction and tool selection are configured for the actual membrane width, reinforcement and fabrication workflow.
- Automatic feeding for long tent, tarpaulin and membrane patterns
- Source-listed automatic edge-finding capability
- Mechanical cold cutting avoids laser heat on coated flexible material
- Digital nesting supports large panels and customized shapes
- Tool and hold-down selection reviewed for reinforcement and coating
- Roll cradle, collection and usable width configured to the production line
02 / Public technical data
Reference configuration
The source material explicitly lists automatic feeding, automatic edge finding and a 1.2 kW maximum-power field. The power-field scope and total machine demand must be verified against the final machine configuration.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Oscillating knife with powered rotary, marking and application-specific punching options
- Material handling
- Automatic feeding for roll material with edge-finding or deviation-correction workflow
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- Source-listed automatic edge finding; camera, projection or digital registration selected by pattern and print requirements
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected to the usable sheet or roll width and maximum part dimensions
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
- Source-listed automation
- Automatic feeding and automatic edge finding
- Source-listed maximum-power field
- 1.2 kW; the field scope and whole-machine demand must be confirmed in the quotation
- Source-listed application scope
- Tent, tarpaulin, raincloth, Oxford cloth, apparel, artificial wool, suede/velvet, artificial turf, inflatable products, sofa and curtain cutting
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
The source material explicitly lists automatic feeding, automatic edge finding and a 1.2 kW maximum-power field. The power-field scope and total machine demand must be verified against the final machine configuration. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
