<- Materials & Physical PropertiesFriction & Tack / 43MCS-02A

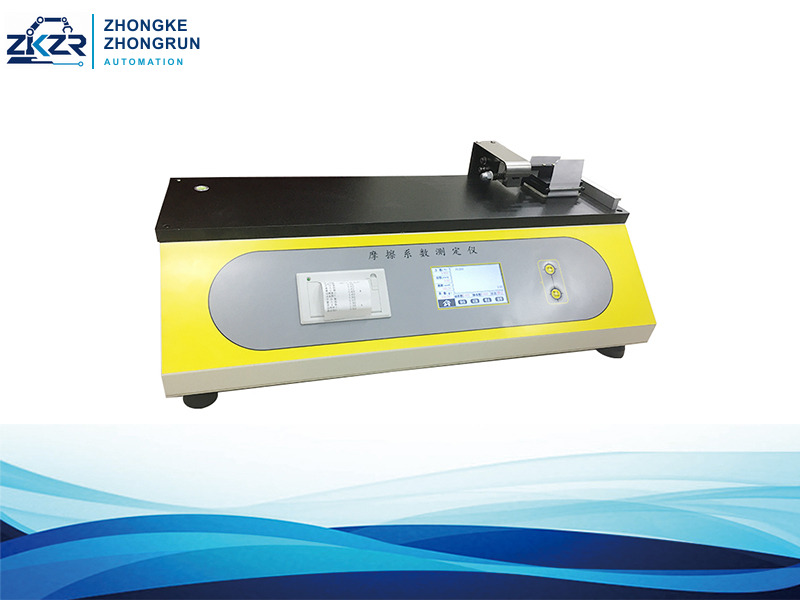

Coefficient of Friction Tester - Touchscreen Model
Measure static and kinetic friction with touchscreen operation.
A touchscreen static and kinetic coefficient-of-friction tester for packaging, paper, coated sheet and consumer-product surface evaluation.
Reference unit price / AvailabilityUSD 4,000 per system / In stock
01 / Application
Workflow and key features
The MCS-02A moves a defined sled across the specimen and records the force curve needed to calculate static and kinetic friction. Touchscreen control and stored statistics support faster routine quality work.
- Touchscreen workflow reduces setup and training time
- Static and kinetic friction with curve display and statistics
- Supports films, paper, foil, laminates, metal and artificial skin
- Can evaluate smoothness of cosmetics and eye-drop packaging with suitable fixtures
- Standard communication and printing support result traceability
02 / Public technical data
Reference configuration
Published values describe the referenced standard configuration. The formal quotation confirms the selected range, fixtures, utilities, method edition and supplied documentation.
- Force options
- 5 N, 10 N or 30 N
- Test accuracy
- 0.2% FS
- Travel
- 400 mm; custom travel available
- Sled masses
- 200 g and 500 g
- Test speed
- 0-1000 mm/min, adjustable
- Specimen height
- 0-30 mm
- Power
- 100 W
- Machine dimensions
- 650 x 340 x 210 mm (L x W x H)
- Net weight
- 22 kg
- Electrical supply
- AC 220 V, 50 Hz
Test-method referencesWorkflow references, not a certification claim4 references +
These references identify workflows described for this model. The formal quotation confirms the exact edition, fixtures, software, accessories and verification documents supplied for the selected configuration.
- GB/T 10006-2021
- ISO 8295:1995
- ASTM D1894
- TAPPI T816
- Material structure and thickness
- Sample dimensions
- Required test method
- Expected force, pressure or barrier range
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published values describe the referenced standard configuration. The formal quotation confirms the selected range, fixtures, utilities, method edition and supplied documentation. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
