<- Glass Container TestingSample Preparation / 20RGS-01

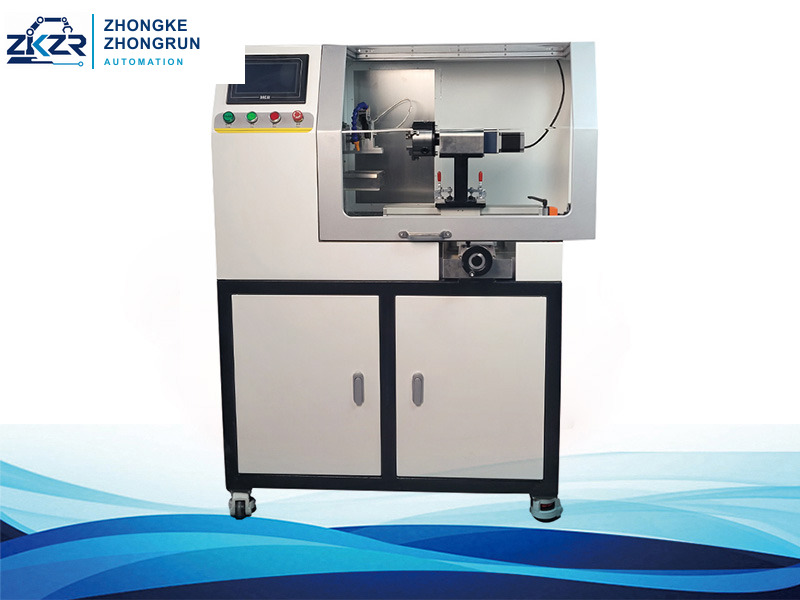

Glass Bottle Cutting Machine
Prepare cut glass-container specimens for chemical-resistance testing.
A controlled glass-container cutting machine for preparing ampoule and vial specimens for alkali-resistance and chemical-resistance tests.
Reference unit price / AvailabilityUSD 4,500 per system / In stock
01 / Application
Workflow and key features
The RGS-01 positions and cuts pharmaceutical glass products into method-compatible specimens. Controlled spindle speed, travel and cutting angle improve preparation consistency compared with improvised manual cutting.
- Adjustable spindle speed and cutting travel for different glass geometries
- Controlled positioning supports repeatable chemical-resistance specimens
- Applicable to ampoules, vials and other configured pharmaceutical glass
- Reduces manual cutting variability in quality and research laboratories
- Fixture and cutting range are selected against the submitted sample
02 / Public technical data
Reference configuration
Published values describe the referenced standard configuration. The formal quotation confirms the selected range, fixtures, utilities, method edition and supplied documentation.
- Spindle speed
- 100-10,000 rpm
- Axial cutting travel
- 40-230 mm; custom sizes available
- Radial cutting travel
- Up to 40 mm; custom sizes available
- Rotation angle
- 0-30 degrees
- Positioning accuracy
- 0.01-0.1 mm
- Operating environment
- 10-40 deg C; RH <=80%
- Machine dimensions
- 1000 x 600 x 1280 mm (L x W x H)
- Electrical supply
- AC 220 V, 50 Hz
Test-method referencesWorkflow references, not a certification claim2 references +
These references identify workflows described for this model. The formal quotation confirms the exact edition, fixtures, software, accessories and verification documents supplied for the selected configuration.
- YBB00352004-2015
- YBB00342004-2015
- Container type and drawing
- Sample dimensions and quantity
- Required test method
- Target load, pressure or thermal profile
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published values describe the referenced standard configuration. The formal quotation confirms the selected range, fixtures, utilities, method edition and supplied documentation. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
