<- Digital Cutting SystemsTechnical Materials / 63ZKZR-DC-GSK
Gasket Digital Cutting System
Cut sealing and gasket materials into custom profiles without dedicated tooling.
A digital gasket cutting system for rubber, PTFE, graphite composite and non-asbestos sealing sheet without dedicated dies.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 10,500 per system / In stock

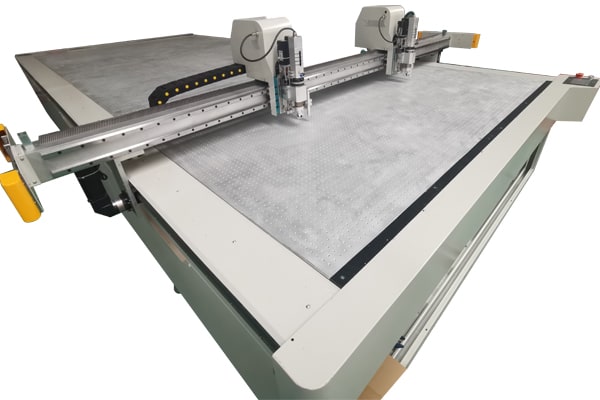

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.
The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
Gasket profiles are imported from CAD, nested and cut on a vacuum table. Tool stroke, blade geometry, table protection and optional routing are selected for material hardness, reinforcement, thickness and required inner-hole quality.
- Die-free production supports one-off and mixed gasket profiles
- Tool selection for rubber, PTFE, graphite and non-asbestos sheet
- Digital nesting improves use of high-value sealing material
- Vacuum zoning stabilizes rings and narrow web features
- Optional routing or punching reviewed for reinforced constructions
- Inner diameter, edge quality and compression-sensitive materials verified by trial
02 / Public technical data
Reference configuration
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Electric or pneumatic oscillating knife; drag knife, punching and routing options for specific gasket constructions
- Material handling
- Fixed zoned-vacuum table for sheet stock; extended table available for larger sealing sheets
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- Digital origin with optional camera or projection support for remnant and irregular-sheet use
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected to the usable sheet or roll width and maximum part dimensions
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
