Printed Fabric Vision Cutting System
Align printed fabric patterns and cut along recognized contours.
A vision-guided conveyor cutter for printed garments, sublimation textiles and patterned flexible goods requiring contour registration.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 15,500 per system / In stock

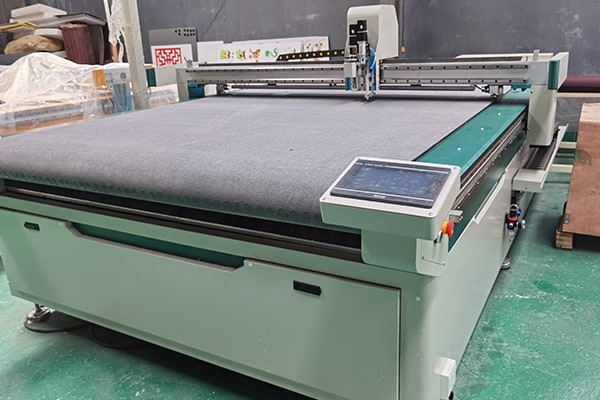

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.
The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
A camera captures printed outlines or registration features, the controller compensates for placement and distortion, and the selected knife follows the corrected contour. Camera field, conveyor width and recognition software are selected for artwork scale and production speed.
- Vision recognition aligns cutting paths to printed contours
- Conveyor feeding supports continuous sublimation and garment rolls
- Distortion compensation is reviewed against the actual print workflow
- Rotary and oscillating tools cover woven, nonwoven and laminated textiles
- Digital nesting and recognition reduce manual pattern alignment
- Camera field, lighting and print tolerance are verified with customer files
02 / Public technical data
Reference configuration
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Powered rotary or oscillating knife with marking and punching options
- Material handling
- Automatic conveyor feeding with roll cradle, feed correction and finished-part collection options
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- Large-area or CCD vision recognition for printed contours, registration marks and patterned fabric
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected to the usable sheet or roll width and maximum part dimensions
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
