<- Digital Cutting SystemsMedical & Sports / 67ZKZR-DC-SPT
Sports Goods Material Cutting System
Cut flexible materials used in sports, protective and recreational products.
A flexible-material digital cutter for sports textiles, protective foam, synthetic leather, rubber sheet and mixed sports-goods components.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 10,000 per system / In stock

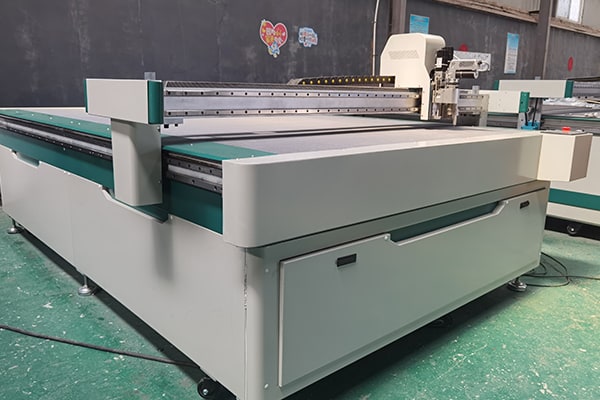

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.
The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
The machine is configured around the product construction rather than one material alone. Interchangeable cutting, punching and marking tools support footwear, pads, protective products, soft equipment and other mixed-material sports applications.
- Interchangeable tools for foam, textile, synthetic leather and rubber
- Digital nesting supports frequent size and style changes
- Punching and marking options combine downstream preparation steps
- Fixed-table and conveyor formats cover sheet and roll materials
- Camera or projection options assist printed and irregular stock
- Each material layer is trial-cut before the final tool set is released
02 / Public technical data
Reference configuration
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Oscillating or powered rotary tool with punching, marking and V-cut options selected by product construction
- Material handling
- Fixed vacuum table or automatic conveyor feeding for sheet and roll components
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- Digital origin with optional camera or projection for printed, irregular or preformed material
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected to the usable sheet or roll width and maximum part dimensions
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
