<- Digital Cutting SystemsVision & Graphics / 62ZKZR-DC-VIS
Vision-Guided Advertising Contour Cutter
Recognize printed contours and cut graphics, signs and display materials.
A camera-guided flatbed cutter for printed vinyl, KT board, foam board, signs and display graphics requiring contour recognition.
Sales reference: This ZKZR code is an export-inquiry reference, not a manufacturer model number. The listed USD price is a baseline export reference for the described application configuration and excludes freight, duties, destination installation and application-specific options. The manufacturer, machine model and final technical scope are identified in the formal quotation.
Reference unit price / AvailabilityUSD 13,000 per system / In stock

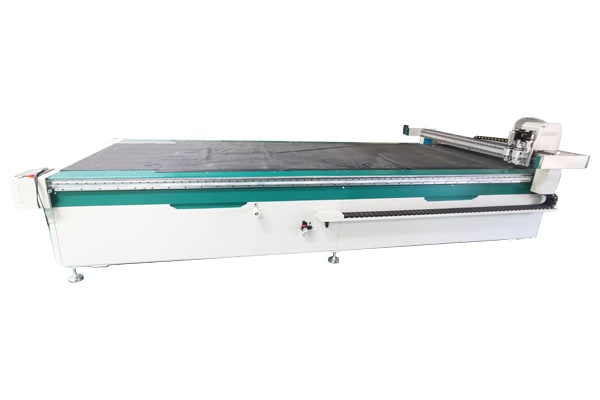

Authorized equipment photograph. Cutting tools, working area and final configuration are confirmed in the quotation.
Application reference
Material context for this cutting workflow.
The application photograph shows a typical material or finished-use context. Material handling, tools and machine configuration are selected for the actual requirement.
01 / Application
Workflow and key features
The vision system locates printed registration marks or contours, compensates for placement variation and guides the selected cutting tool along the artwork. Camera field, recognition method and tool head are matched to print size, substrate and finishing process.
- Camera-assisted contour recognition for printed graphics
- Registration compensation reduces manual alignment work
- Tool choices for vinyl, foam board, KT board and display substrates
- Kiss-cutting and through-cutting configurations available
- Digital path processing supports frequent artwork changes
- Camera field, print tolerance and cut accuracy confirmed by sample files
02 / Public technical data
Reference configuration
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review.
- Cutting process
- Die-free mechanical cold cutting from digital patterns
- Recommended tool set
- Oscillating, drag or kiss-cut tool; creasing, routing and marking options for board and display media
- Material handling
- Fixed vacuum flatbed; conveyor option for compatible roll graphics
- Material hold-down
- Zoned vacuum adsorption selected for material porosity and usable width
- Positioning and recognition
- CCD or industrial-camera contour recognition with registration-mark and edge-finding workflow
- Digital workflow
- CAD/CAM pattern import, path planning and nesting; supported file formats confirmed with the selected controller
- Working area
- Selected to the usable sheet or roll width and maximum part dimensions
- Performance release
- Cutting speed, thickness and accuracy confirmed by sample, geometry and selected tool
- Destination utilities
- Electrical supply, vacuum capacity and compressed-air demand confirmed for the selected tool set and destination
Test-method referencesReviewed for the selected applicationConfirm on request +
The public source material does not identify a reliable model-specific method list. Send the required method or acceptance procedure and we will confirm compatibility, fixtures, software and supplied verification documents before quotation.
- Material type, thickness and roll or sheet format
- Required working area and feeding method
- Cut geometry, file format and nesting workflow
- Destination utilities, throughput target and collection method
Configuration boundary
Request formal configurationThe quoted configuration remains the controlling specification.
Published items describe the intended workflow and selectable configuration, not a fixed universal machine. Working area, tools, speed, cutting thickness, accuracy, total power, vacuum system, compressed-air demand, software and safety scope are confirmed after a material test and application review. Delivery scope, warranty, lead time, calibration evidence and overseas service are stated in the formal offer.
